Sumitomo

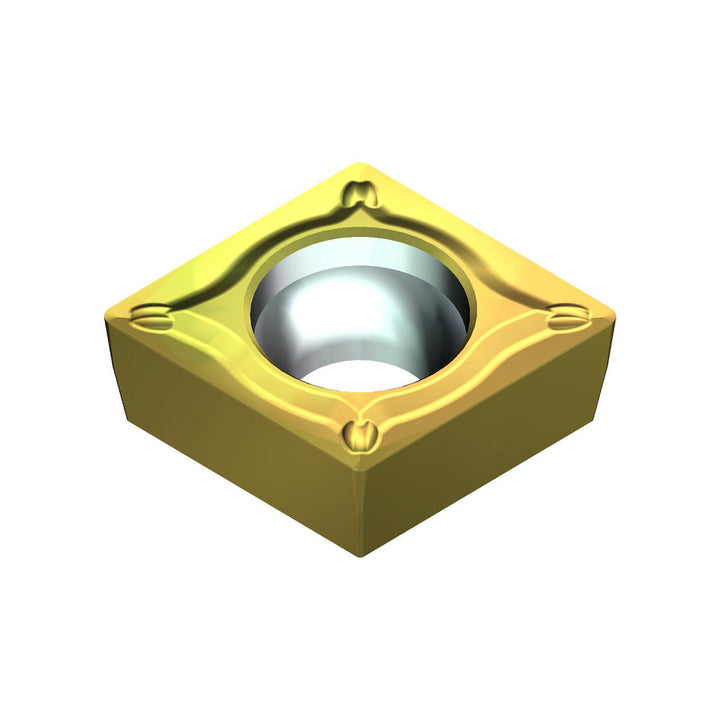

CCMT060204N-SU Cermet Insert, Grade T1500Z, Coated - Sumitomo 194ABPC
MFR# 194ABPCISO/ANSI# CCMT060204Series CC
$7.73List $9.92
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeT1500Z
MaterialCermet
CoatingCoated
Description
The Sumitomo 194ABPC is a CCMT060204N-SU cermet indexable insert, grade T1500Z, Coated coated. Suited for steel.
Specifications
Ansi insert codeCCMT21.51
Ansi size code21.51
Chip breakerESU
Chip breaker operationFinishing; Light Machining
Clearance codeC
Coating finishCoated
Coating processPVD
Corner radius in1/64
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1102
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2520
Insert materialCermet
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code21.51
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT060204N-SU
Iso insert codeCCMT060204
Iso size code060204
Manufacturer gradeT1500Z
Primary workpiece materialSteel
RakePositive
Relief angle7
Side clearancePositive
StandardsANSI; ISO 13399
Tolerance codeM
