Sumitomo

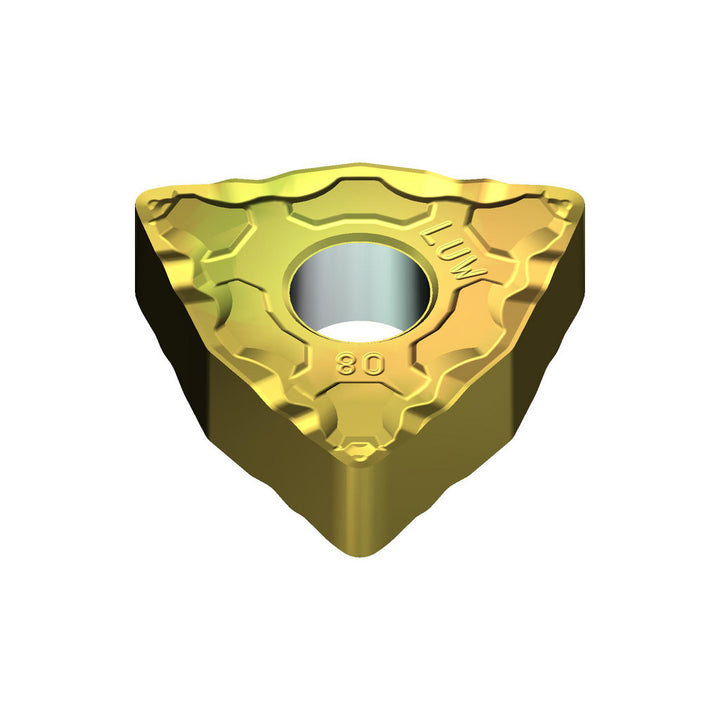

WNMG080404N-LUW Cermet Insert, Grade T1500Z, Coated - Sumitomo 194ABRT
MFR# 194ABRTISO/ANSI# WNMG080404N-LUWSeries WN
$10.64List $13.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeT1500Z
MaterialCermet
CoatingCoated
Description
The Sumitomo 194ABRT is a WNMG080404N-LUW cermet indexable insert, grade T1500Z, Coated coated. Suited for steel.
Specifications
Chip breakerELU
Clearance codeN
Coating finishCoated
Coating processPVD
Corner radius in1/64
Hole diameter0.2031
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3425
Insert materialCermet
Insert shapeTrigon
Insert size code431
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080404N-LUW
Manufacturer gradeT1500Z
Primary workpiece materialSteel
RakeNegative
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
