Sumitomo

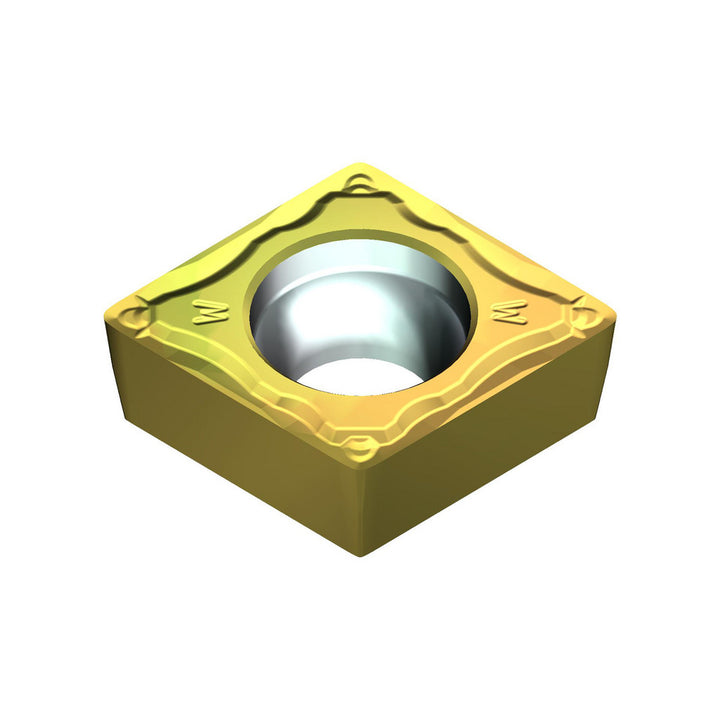

CCMT09T304N-LUW Cermet Insert, Grade T1500Z, Coated - Sumitomo 194ABVY
MFR# 194ABVYISO/ANSI# CCMT09T304Series CC
$9.16List $11.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeT1500Z
MaterialCermet
CoatingCoated
Description
The Sumitomo 194ABVY is a CCMT09T304N-LUW cermet indexable insert, grade T1500Z, Coated coated. Suited for steel.
Specifications
Ansi insert codeCCMT32.51
Ansi size code32.51
Chip breakerELUW
Chip breaker operationWiper - Finishing
Clearance codeC
Coating finishCoated
Coating processPVD
Corner radius in1/64
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3819
Insert materialCermet
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code32.51
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T304N-LUW
Iso insert codeCCMT09T304
Iso size code09T304
Manufacturer gradeT1500Z
Primary workpiece materialSteel
RakePositive
Relief angle7
Side clearancePositive
StandardsANSI; ISO 13399
Tolerance codeM
Wiper edgeYes
