Sumitomo

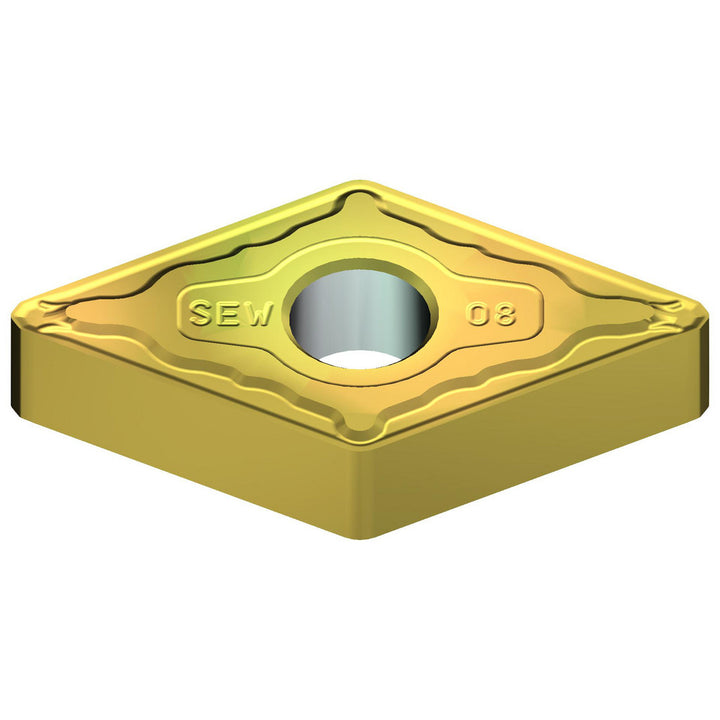

DNMX150408N-SEW Cermet Insert, Grade T1500Z, Coated - Sumitomo 194ACCW
MFR# 194ACCWISO/ANSI# DNMX150408N-SEWSeries DN
$14.97List $19.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeT1500Z
MaterialCermet
CoatingCoated
Description
The Sumitomo 194ACCW is a DNMX150408N-SEW cermet indexable insert, grade T1500Z, Coated coated. Suited for steel.
Specifications
Ansi codeDNMX432ESEW
Chip breakerESEW
Clearance codeN
Coating finishCoated
Coating processPVD
Corner radius in1/32
Hole diameter0.2031
Included angle55.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialCermet
Insert shapeDiamond
Insert size code432
Insert styleDNMX
Insert thickness in3/16
Iso codeDNMX150408N-SEW
Manufacturer gradeT1500Z
Primary workpiece materialSteel
RakeNegative
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
Wiper edgeYes
