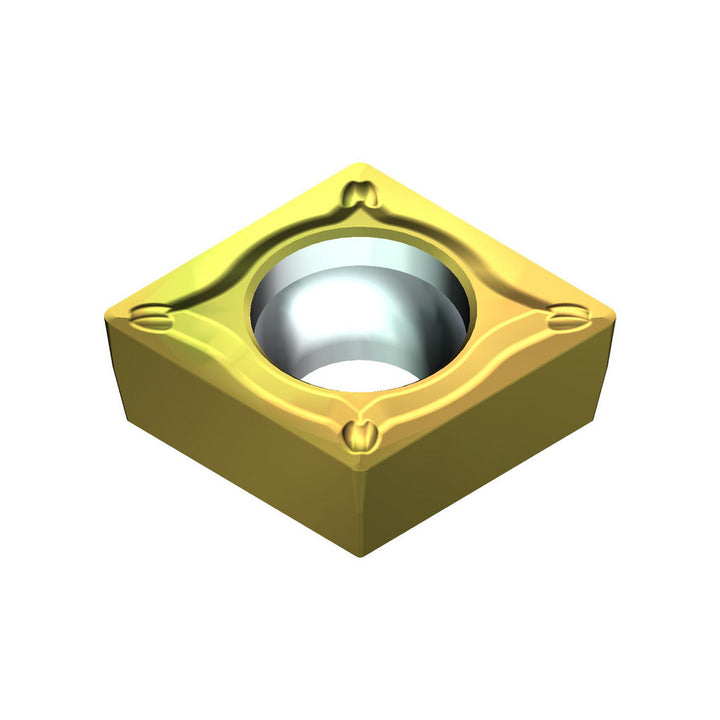

CPMT09T308N-SU Cermet Insert, Grade T1500Z, Coated - Sumitomo 194AWHE
MFR# 194AWHEISO/ANSI# CPMT09T308N-SUSeries CP
$8.83List $11.32
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeT1500Z
MaterialCermet
CoatingCoated
Description
The Sumitomo 194AWHE is a CPMT09T308N-SU cermet indexable insert, grade T1500Z, Coated coated. Suited for steel.
Specifications
Ansi codeCPMT32.52ESU
Chip breakerESU
Clearance codeP
Coating finishCoated
Coating processPVD
Corner radius in1/32
Hole diameter0.1732
Included angle80.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3819
Insert materialCermet
Insert shapeDiamond
Insert size code32.52
Insert styleCPMT
Insert thickness in5/32
Iso codeCPMT09T308N-SU
Manufacturer gradeT1500Z
Primary workpiece materialSteel
RakePositive
Relief angle11
StandardsANSI; ISO 13399
Tolerance codeM
