Sumitomo

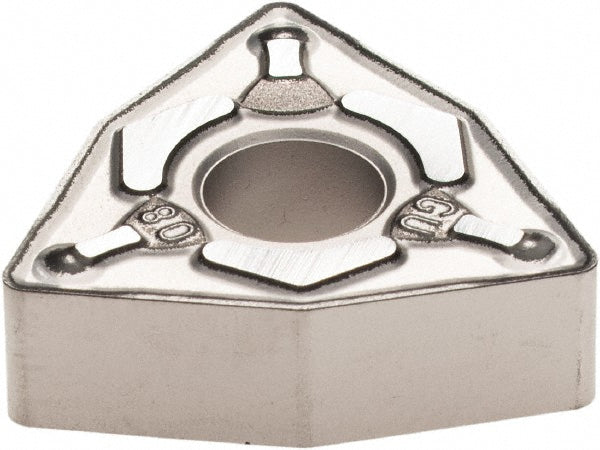

WNMG080408N-GU Carbide Insert, Grade AC6030M, Coated - Sumitomo 196C337
MFR# 196C337ISO/ANSI# WNMG080402Series TN
$14.14List $17.83
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeW - Trigon 80-Deg
GradeAC6030M
MaterialCarbide
CoatingCoated
Description
The Sumitomo 196C337 is a WNMG080408N-GU carbide indexable insert, grade AC6030M, Coated coated. Suited for stainless steel.
Specifications
Ansi insert codeWNMG432
Ansi size code432
Chip breakerEGU
Chip breaker operationLight Machining; Medium Machining
Clearance codeN
Coating finishCoated
Coating processCVD
Corner radius in1/32
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2031
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3425
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080408N-GU
Iso insert codeWNMG080402
Iso size code080402
Manufacturer gradeAC6030M
Primary workpiece materialStainless Steel
RakeNegative
Relief angle0
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
