Sumitomo

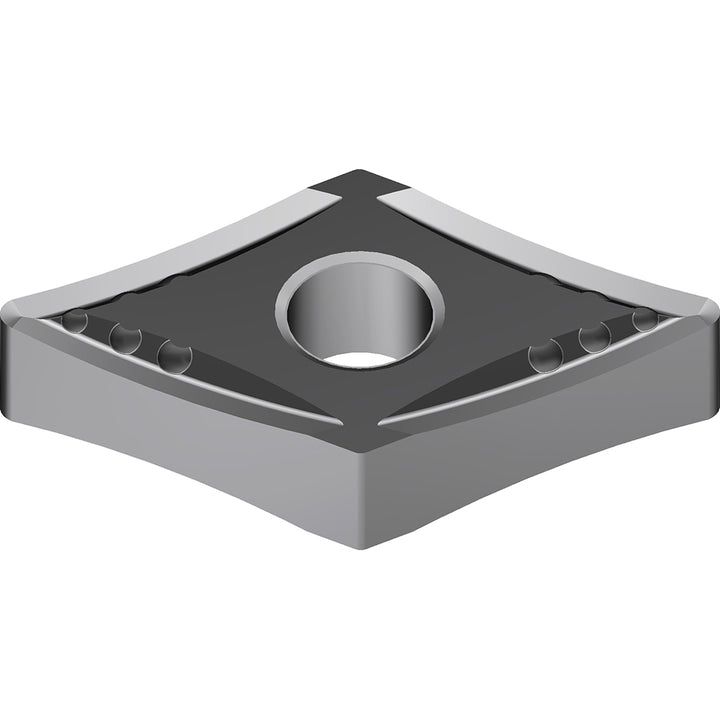

DNMG150408N-UP Carbide Insert, Grade AC6030M, Absotech - Sumitomo 196C367
MFR# 196C367ISO/ANSI# DNMG150408N-UPCat# DNMG432EUP-AC6030MSeries AC6000M
$20.54List $25.88
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
GradeAC6030M
MaterialCarbide
CoatingAbsotech
Description
The Sumitomo 196C367 is a DNMG150408N-UP carbide indexable insert, grade AC6030M, Absotech coated. Suited for stainless steel.
Specifications
Chip breakerEUP
Clearance codeN
Coating finishAbsotech
Coating processCVD
Corner radius0.0315
Included angle55
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialCarbide
Insert size code432
Insert styleDNMG
Insert thickness0.1874
Iso codeDNMG150408N-UP
Length range0.6000 - 0.6500
Manufacturers catalog numberDNMG432EUP-AC6030M
Manufacturer gradeAC6030M
Material gradeM30; M35; M25
Primary workpiece materialStainless Steel
RakeNegative
Relief angle0
Tolerance codeM
