Sumitomo

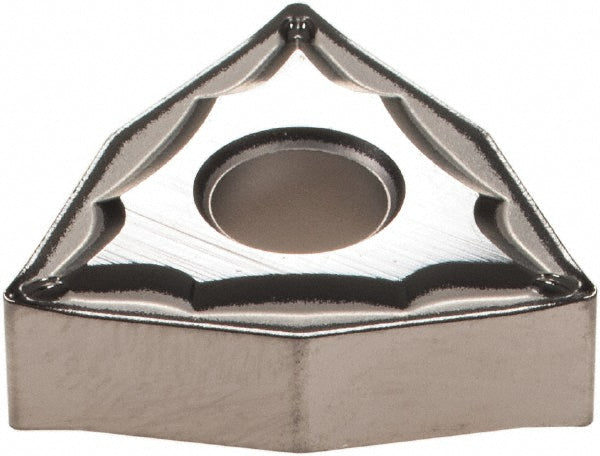

WNMG080404N-SU Carbide Insert, Grade AC6030M, Coated - Sumitomo 196CAPF
MFR# 196CAPFISO/ANSI# WNMG080404Series TN
$12.31List $15.78
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeW - Trigon 80-Deg
GradeAC6030M
MaterialCarbide
CoatingCoated
Description
The Sumitomo 196CAPF is a WNMG080404N-SU carbide indexable insert, grade AC6030M, Coated coated. Suited for stainless steel.
Specifications
Ansi insert codeWNMG431
Ansi size code431
Chip breakerESU
Chip breaker operationFinishing; Light Machining
Clearance codeN
Coating finishCoated
Coating processCVD
Corner radius in1/64
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2031
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3425
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code431
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080404N-SU
Iso insert codeWNMG080404
Iso size code080404
Manufacturer gradeAC6030M
Primary workpiece materialStainless Steel
RakeNegative
Relief angle0
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
