Sumitomo

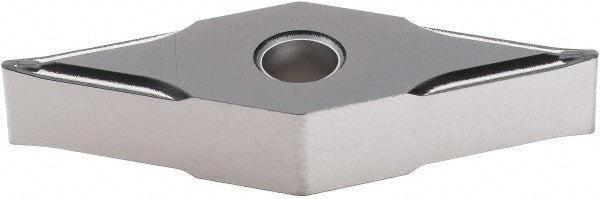

VNMG160404N-SU Solid Carbide Insert, Grade AC6030M, Coated - Sumitomo 196CAPR
MFR# 196CAPRISO/ANSI# VNMG160404N-SUSeries VN
$18.42List $23.63
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC6030M
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 196CAPR is a VNMG160404N-SU solid carbide indexable insert, grade AC6030M, Coated coated. Suited for stainless steel.
Specifications
Ansi codeVNMG331ESU
Chip breakerESU
Clearance codeN
Coating finishCoated
Coating processCVD
Corner radius in1/64
Hole diameter0.1500
Included angle35.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6535
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code331
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160404N-SU
Manufacturer gradeAC6030M
Primary workpiece materialStainless Steel
RakeNegative
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
