Sumitomo

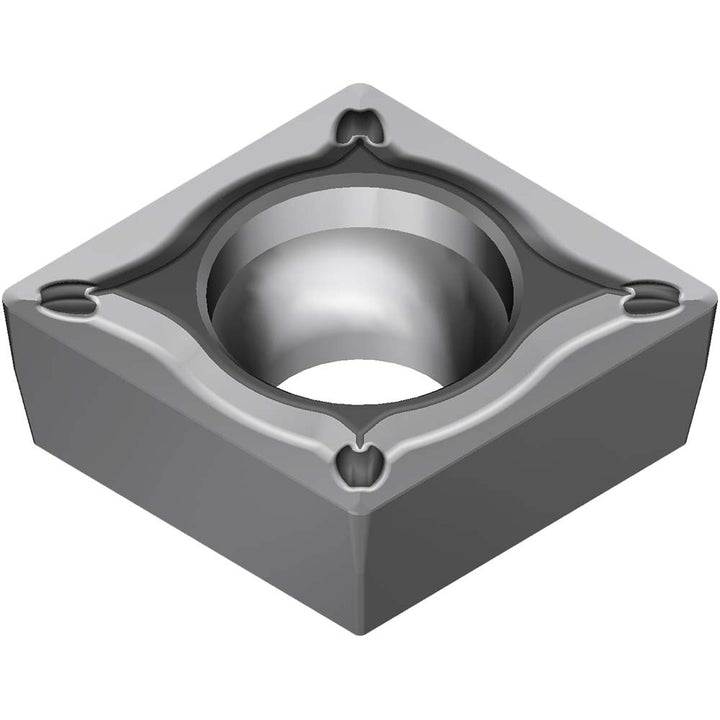

CCMT060208N-SU Carbide Insert, Grade AC6030M, Coated - Sumitomo 196CBPD
MFR# 196CBPDISO/ANSI# CCMT060208Series CC
$9.22List $11.62
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeAC6030M
MaterialCarbide
CoatingCoated
Description
The Sumitomo 196CBPD is a CCMT060208N-SU carbide indexable insert, grade AC6030M, Coated coated. Suited for stainless steel.
Specifications
Ansi insert codeCCMT21.52
Ansi size code21.52
Chip breakerESU
Chip breaker operationFinishing; Light Machining
Clearance codeC
Coating finishCoated
Coating processCVD
Corner radius in1/32
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1102
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2520
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code21.52
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT060208N-SU
Iso insert codeCCMT060208
Iso size code060208
Manufacturer gradeAC6030M
Primary workpiece materialStainless Steel
RakePositive
Relief angle7
Side clearancePositive
StandardsANSI; ISO 13399
Tolerance codeM
