Sumitomo

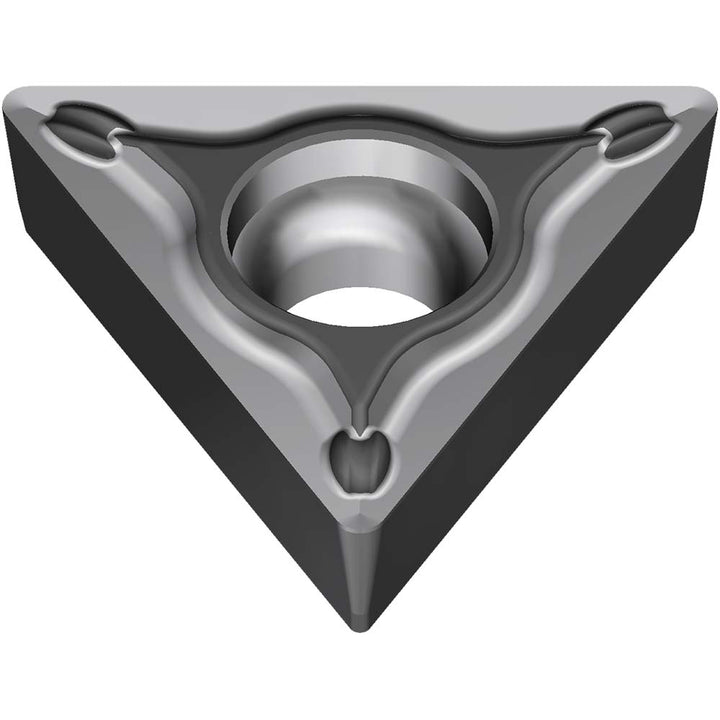

TCMT16T308N-SU Solid Carbide Insert, Grade AC6030M, Coated - Sumitomo 196CBPU
MFR# 196CBPUISO/ANSI# TCMT16T308N-SUSeries TC
$13.88List $17.79
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeAC6030M
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 196CBPU is a TCMT16T308N-SU solid carbide indexable insert, grade AC6030M, Coated coated. Suited for stainless steel.
Specifications
Ansi codeTCMT32.52ESU
Chip breakerESU
Clearance codeC
Coating finishCoated
Coating processCVD
Corner radius in1/32
Hole diameter0.1693
Included angle60.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6496
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code32.52
Insert styleTCMT
Insert thickness in5/32
Iso codeTCMT16T308N-SU
Manufacturer gradeAC6030M
Primary workpiece materialStainless Steel
RakePositive
Relief angle7
StandardsANSI; ISO 13399
Tolerance codeM
