Sumitomo

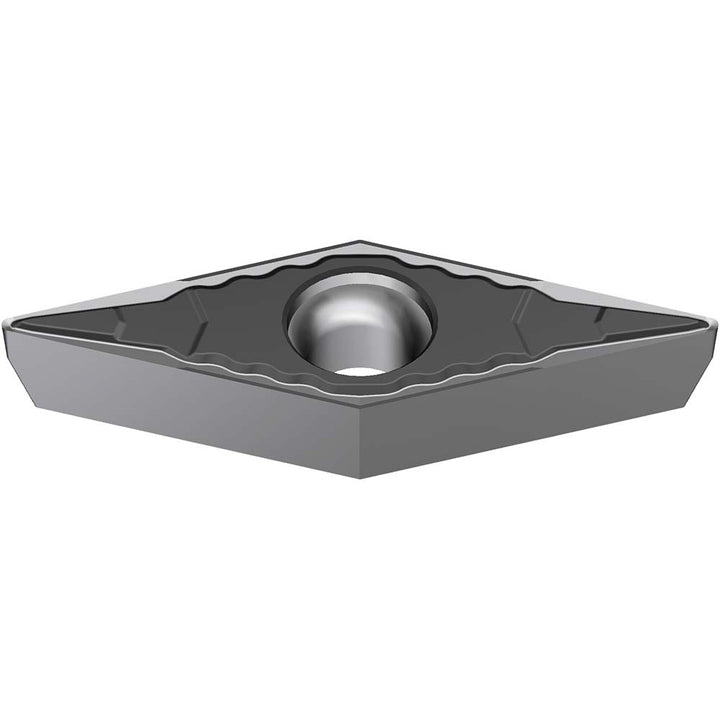

VBMT160404N-LU Carbide Insert, Grade AC6030M, Coated - Sumitomo 196CBUY
MFR# 196CBUYISO/ANSI# VBMT160404N-LUSeries VB
$21.74List $27.89
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC6030M
MaterialCarbide
CoatingCoated
Description
The Sumitomo 196CBUY is a VBMT160404N-LU carbide indexable insert, grade AC6030M, Coated coated. Suited for stainless steel.
Specifications
Chip breakerELU
Clearance codeB
Coating finishCoated
Coating processCVD
Corner radius in1/64
Hole diameter0.1732
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6535
Insert materialCarbide
Insert shapeDiamond
Insert size code331
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT160404N-LU
Manufacturer gradeAC6030M
Primary workpiece materialStainless Steel
RakePositive
Relief angle5
StandardsANSI; ISO 13399
Tolerance codeM
