Sumitomo

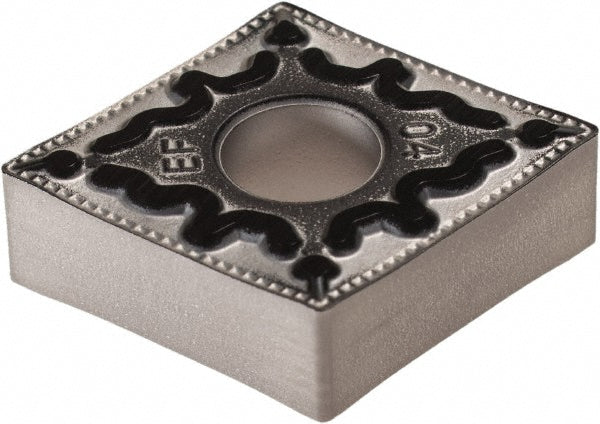

CNMG120404N-EF Carbide Insert, Grade AC6030M, Coated - Sumitomo 196CCGN
MFR# 196CCGNISO/ANSI# CNMG120404N-EFSeries CN
$12.31List $15.78
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC6030M
MaterialCarbide
CoatingCoated
Description
The Sumitomo 196CCGN is a CNMG120404N-EF carbide indexable insert, grade AC6030M, Coated coated. Suited for stainless steel.
Specifications
Chip breakerEEF
Clearance codeN
Coating finishCoated
Coating processCVD
Corner radius in1/64
Hole diameter0.2031
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialCarbide
Insert shapeDiamond
Insert size code431
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120404N-EF
Manufacturer gradeAC6030M
Primary workpiece materialStainless Steel
RakeNegative
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
