Sumitomo

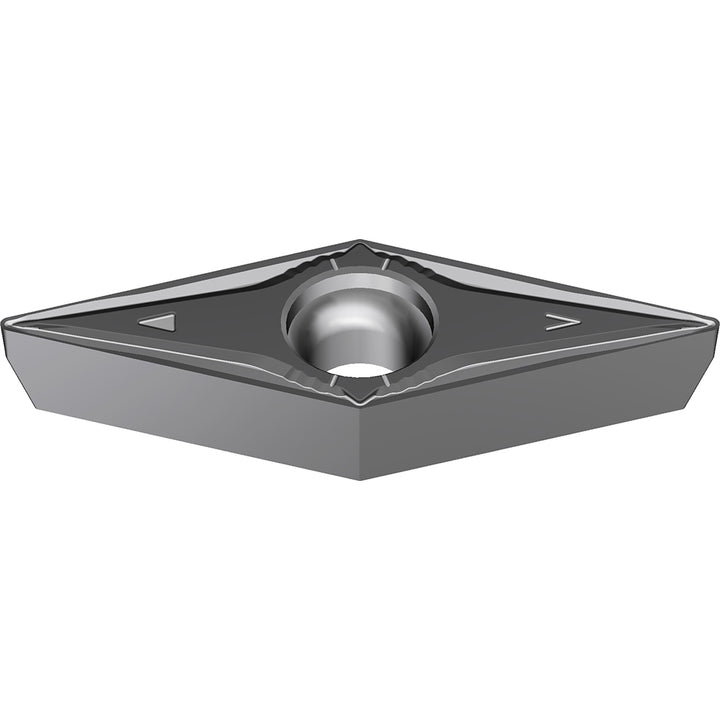

VBMT160408N-GU Carbide Insert, Grade AC6030M, Absotech - Sumitomo 196CDDP
MFR# 196CDDPISO/ANSI# VBMT160408Cat# VBMT332EGU-AC6030MSeries AC6000M
$21.74List $27.89
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeAC6030M
MaterialCarbide
CoatingAbsotech
Description
The Sumitomo 196CDDP is a VBMT160408N-GU carbide indexable insert, grade AC6030M, Absotech coated. Suited for stainless steel.
Specifications
Ansi insert codeVBMT332
Ansi size code332
Chip breakerEGU
Chip breaker operationLight Machining; Medium Machining
Clearance codeB
Coating finishAbsotech
Coating processCVD
Corner radius0.0315
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle35
Inscribed circle in3/8
Insert holding methodScrew-On
Insert length0.6535
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code332
Insert styleVBMT
Insert thickness0.1874
Iso codeVBMT160408N-GU
Iso insert codeVBMT160408
Iso size code160408
Length range0.6500 - 0.7000
Manufacturers catalog numberVBMT332EGU-AC6030M
Manufacturer gradeAC6030M
Material gradeM30; M35; M25
Primary workpiece materialStainless Steel
RakePositive
Relief angle5
Side clearancePositive
Tolerance codeM
