Sumitomo

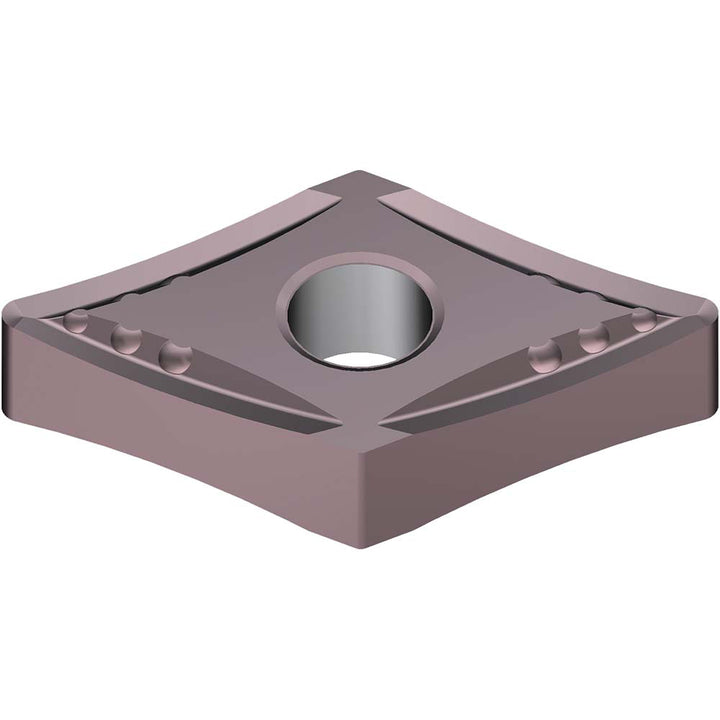

DNMG150404N-UP Carbide Insert, Grade AC6040M, Coated - Sumitomo 196D366
MFR# 196D366ISO/ANSI# DNMG150404Series DN
$17.85List $22.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeAC6040M
MaterialCarbide
CoatingCoated
Description
The Sumitomo 196D366 is a DNMG150404N-UP carbide indexable insert, grade AC6040M, Coated coated. Suited for stainless steel.
Specifications
Ansi insert codeDNMG431
Ansi size code431
Chip breakerEUP
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishCoated
Coating processPVD
Corner radius in1/64
Grade characteristicsStainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.2031
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code431
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150404N-UP
Iso insert codeDNMG150404
Iso size code150404
Manufacturer gradeAC6040M
Primary workpiece materialStainless Steel
RakeNegative
Relief angle0
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
