Sumitomo

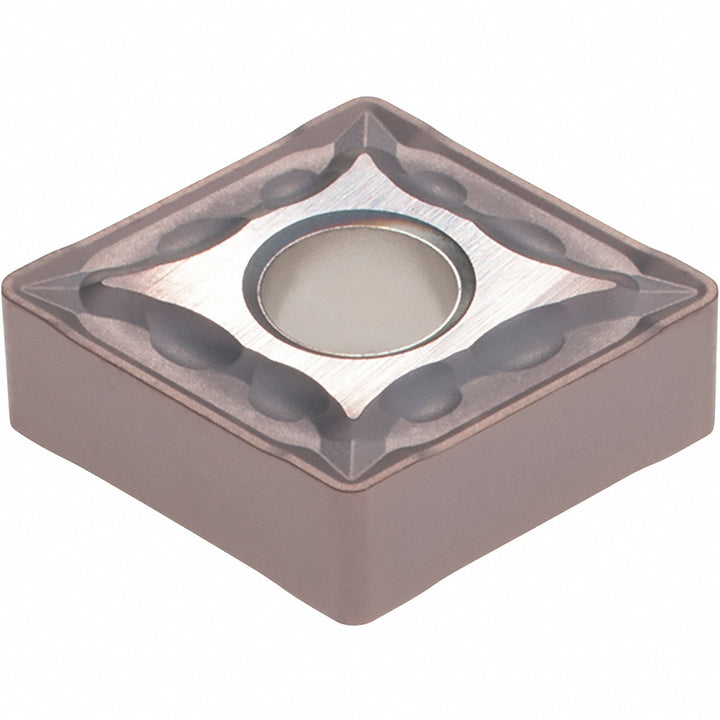

CNMG120408N-MU Solid Carbide Insert, Grade AC6040M, Coated - Sumitomo 196DAFI
MFR# 196DAFIISO/ANSI# CNMG120408N-MUSeries CN
$12.31List $15.78
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC6040M
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 196DAFI is a CNMG120408N-MU solid carbide indexable insert, grade AC6040M, Coated coated. Suited for stainless steel.
Specifications
Ansi codeCNMG432EMU
Chip breakerEMU
Clearance codeN
Coating finishCoated
Coating processPVD
Corner radius in1/32
Hole diameter0.2031
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408N-MU
Manufacturer gradeAC6040M
Primary workpiece materialStainless Steel
RakeNegative
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
