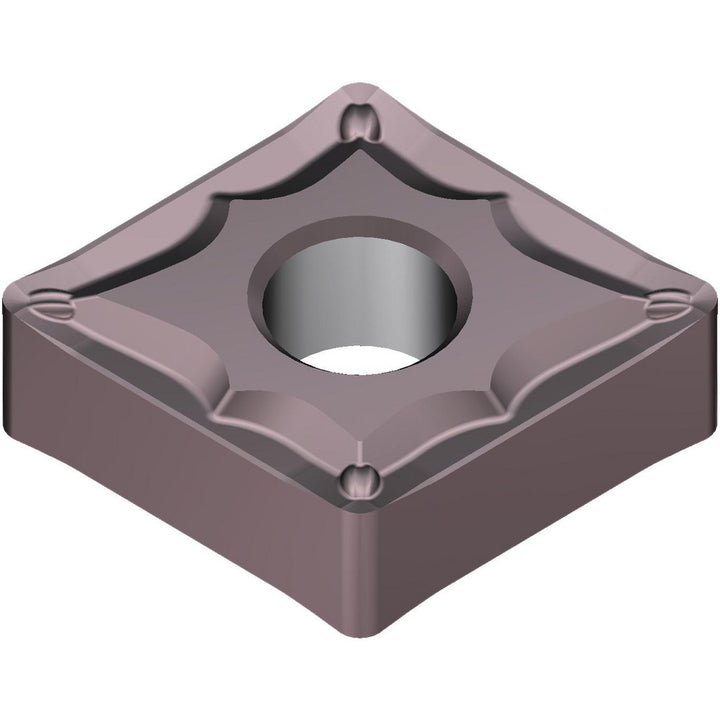

CNMG120402N-SU Carbide Insert, Grade AC6040M, Absotech - Sumitomo 196DBWM
MFR# 196DBWMISO/ANSI# CNMG120402N-SUCat# CNMG430.5ESU-AC6040MSeries AC6000M
$12.31List $15.78
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
GradeAC6040M
MaterialCarbide
CoatingAbsotech
Description
The Sumitomo 196DBWM is a CNMG120402N-SU carbide indexable insert, grade AC6040M, Absotech coated. Suited for stainless steel.
Specifications
Chip breakerESU
Clearance codeN
Coating finishAbsotech
Coating processPVD
Corner radius0.0079
Included angle80
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialCarbide
Insert size code430.5
Insert styleCNMG
Insert thickness0.1874
Iso codeCNMG120402N-SU
Length range0.5000 - 0.6000
Manufacturers catalog numberCNMG430.5ESU-AC6040M
Manufacturer gradeAC6040M
Material gradeM40; M30
Primary workpiece materialStainless Steel
RakeNegative
Relief angle0
Tolerance codeM
