Sumitomo

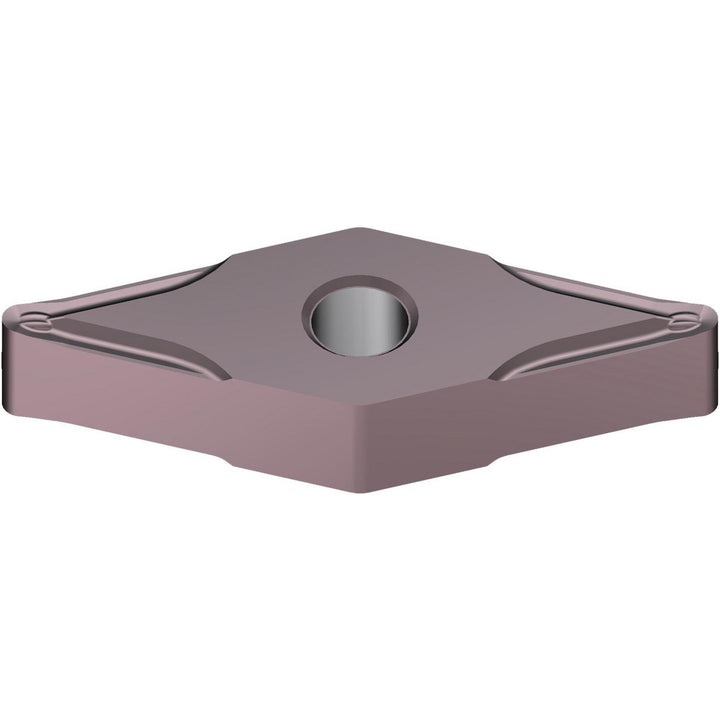

VNMG160402N-SU Carbide Insert, Grade AC6040M, Absotech - Sumitomo 196DBWT
MFR# 196DBWTISO/ANSI# VNMG160402N-SUCat# VNMG330.5ESU-AC6040MSeries AC6000M
$18.42List $23.63
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeAC6040M
MaterialCarbide
CoatingAbsotech
Description
The Sumitomo 196DBWT is a VNMG160402N-SU carbide indexable insert, grade AC6040M, Absotech coated. Suited for stainless steel.
Specifications
Chip breakerESU
Clearance codeN
Coating finishAbsotech
Coating processPVD
Corner radius0.0079
Included angle35
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.6535
Insert materialCarbide
Insert size code330.5
Insert styleVNMG
Insert thickness0.1874
Iso codeVNMG160402N-SU
Length range0.6500 - 0.7000
Manufacturers catalog numberVNMG330.5ESU-AC6040M
Manufacturer gradeAC6040M
Material gradeM40; M30
Primary workpiece materialStainless Steel
RakeNegative
Relief angle0
Tolerance codeM
