Sumitomo

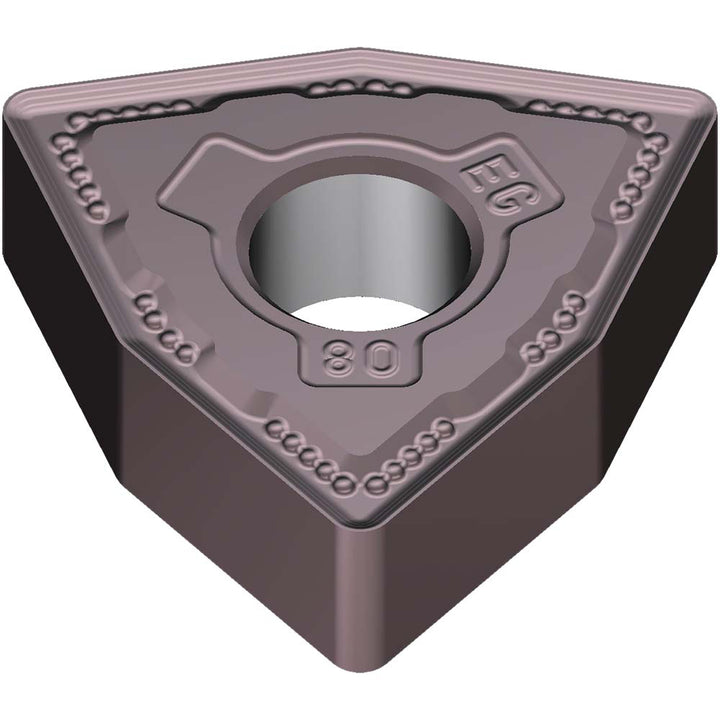

WNMG080408N-EG Solid Carbide Insert, Grade AC6040M, Coated - Sumitomo 196DCGK
MFR# 196DCGKISO/ANSI# WNMG080408N-EGSeries TN
$12.31List $15.78
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeAC6040M
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 196DCGK is a WNMG080408N-EG solid carbide indexable insert, grade AC6040M, Coated coated. Suited for stainless steel.
Specifications
Ansi codeWNMG432EEG
Chip breakerEEG
Clearance codeN
Coating finishCoated
Coating processPVD
Corner radius in1/32
Hole diameter0.2031
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3425
Insert materialSolid Carbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080408N-EG
Manufacturer gradeAC6040M
Primary workpiece materialStainless Steel
RakeNegative
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
