Sumitomo

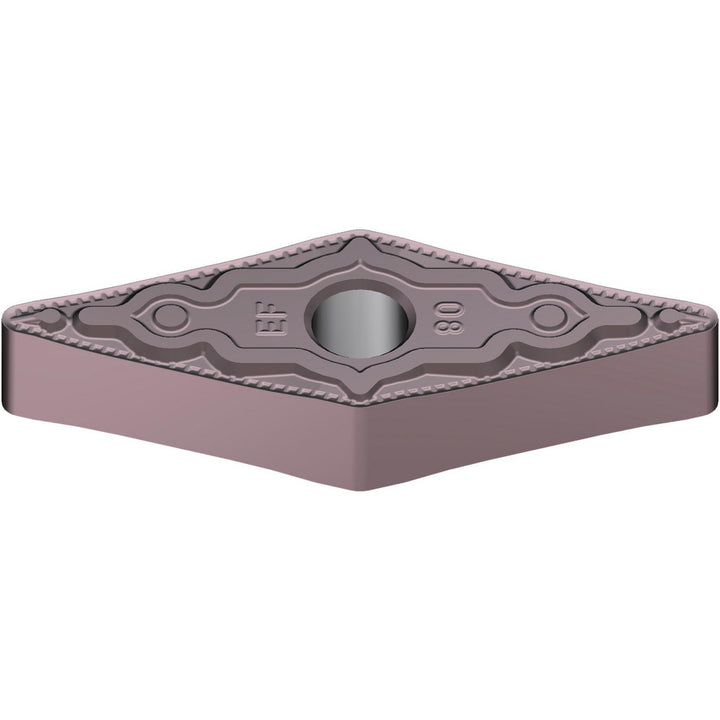

VNMG160402N-EF Solid Carbide Insert, Grade AC6040M, Absotech - Sumitomo 196DCHU
MFR# 196DCHUISO/ANSI# VNMG160402N-EFCat# VNMG330.5EEF-AC6040MSeries AC6000M
$17.52List $22.08
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeAC6040M
MaterialSolid Carbide
CoatingAbsotech
Description
The Sumitomo 196DCHU is a VNMG160402N-EF solid carbide indexable insert, grade AC6040M, Absotech coated. Suited for stainless steel.
Specifications
Chip breakerEEF
Clearance codeN
Coating finishAbsotech
Coating processPVD
Corner radius0.0079
Included angle35.0
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.6535
Insert materialSolid Carbide
Insert size code330.5
Insert styleVNMG
Insert thickness0.1874
Iso codeVNMG160402N-EF
Length range0.6500 - 0.7000
Manufacturers catalog numberVNMG330.5EEF-AC6040M
Manufacturer gradeAC6040M
Material gradeM40; M30
Primary workpiece materialStainless Steel
RakeNegative
Relief angle0
Tolerance codeM
