Sumitomo

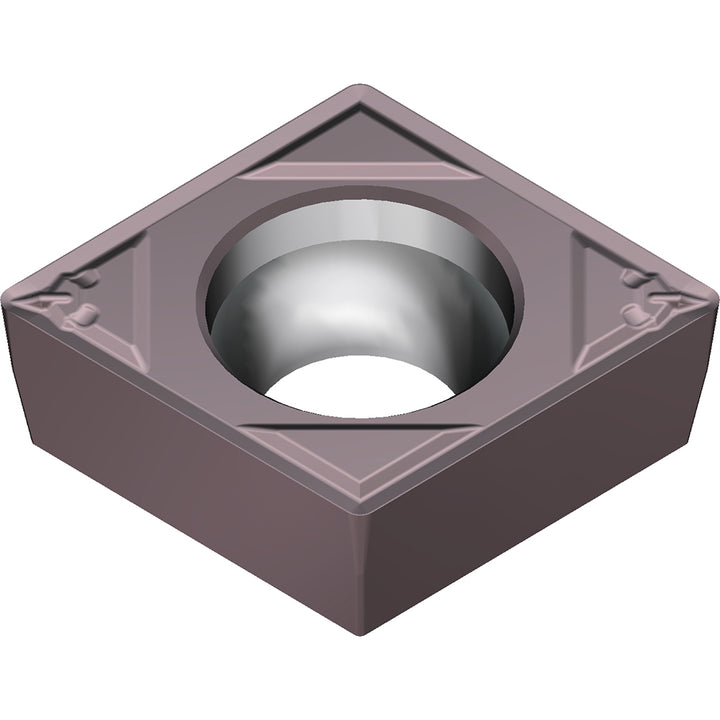

CCMT09T308N-LB Carbide Insert, Grade AC6040M, Absotech - Sumitomo 196DCLB
MFR# 196DCLBISO/ANSI# CCMT09T308N-LBCat# CCMT32.52ELB-AC6040MSeries AC6000M
$11.20List $14.36
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeAC6040M
MaterialCarbide
CoatingAbsotech
Description
The Sumitomo 196DCLB is a CCMT09T308N-LB carbide indexable insert, grade AC6040M, Absotech coated. Suited for stainless steel.
Specifications
Chip breakerELB
Clearance codeC
Coating finishAbsotech
Coating processPVD
Corner radius0.0315
Included angle80
Inscribed circle in3/8
Insert holding methodScrew-On
Insert length0.3819
Insert materialCarbide
Insert size code32.52
Insert styleCCMT
Insert thickness0.1563
Iso codeCCMT09T308N-LB
Length range0.3000 - 0.4000
Manufacturers catalog numberCCMT32.52ELB-AC6040M
Manufacturer gradeAC6040M
Material gradeM40; M30
Primary workpiece materialStainless Steel
RakePositive
Relief angle7
Tolerance codeM
