Sumitomo

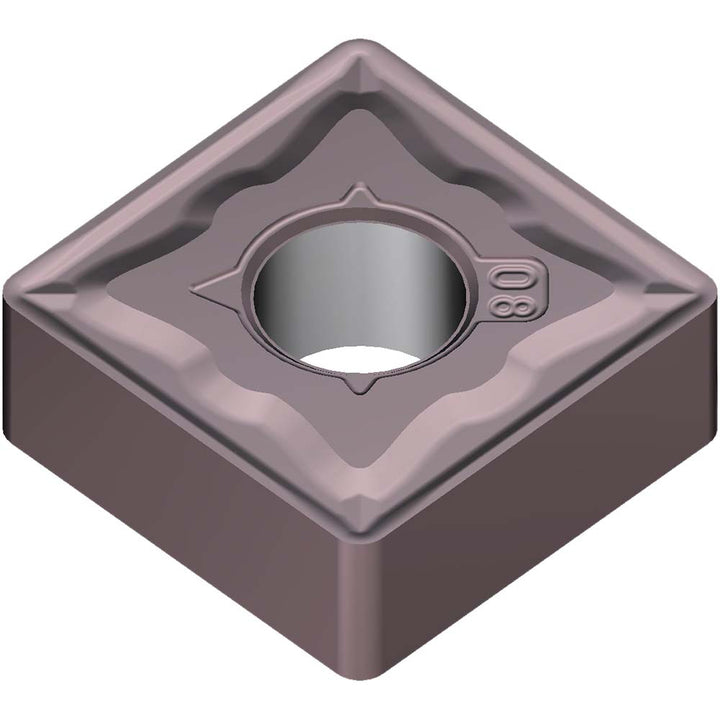

SNMG190612N-EM Solid Carbide Insert, Grade AC6040M, Coated - Sumitomo 196DCNT
MFR# 196DCNTISO/ANSI# SNMG190612N-EMSeries SN
$23.40List $30.01
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeSquare
GradeAC6040M
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 196DCNT is a SNMG190612N-EM solid carbide indexable insert, grade AC6040M, Coated coated. Suited for stainless steel.
Specifications
Ansi codeSNMG643EEM
Chip breakerEEM
Clearance codeN
Coating finishCoated
Coating processPVD
Corner radius in3/64
Hole diameter0.3126
Included angle90.0
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in3/4
Insert materialSolid Carbide
Insert shapeSquare
Insert size code643
Insert styleSNMG
Insert thickness in1/4
Iso codeSNMG190612N-EM
Manufacturer gradeAC6040M
Primary workpiece materialStainless Steel
RakeNegative
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
Width in3/4
