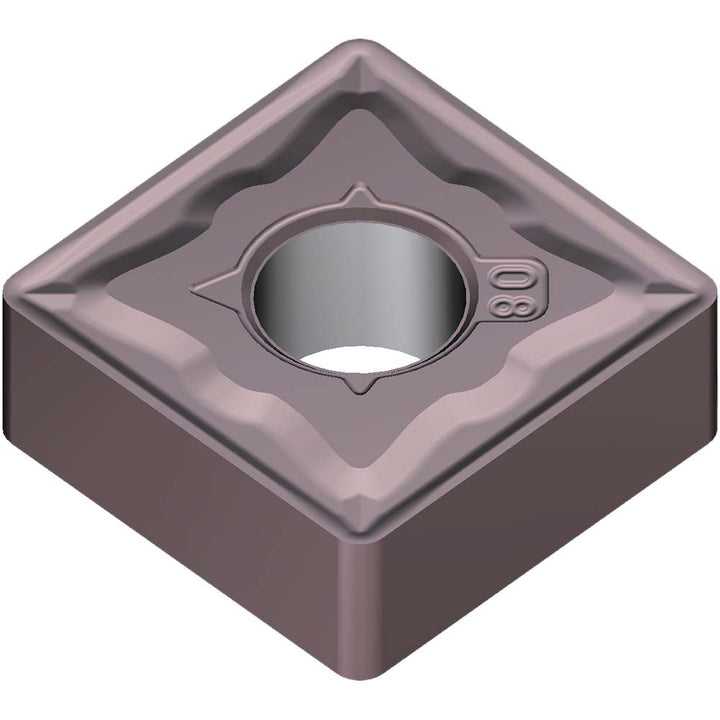

SNMG190616N-EM Carbide Insert, Grade AC6040M, Coated - Sumitomo 196DCNU

Sumitomo

SNMG190616N-EM Carbide Insert, Grade AC6040M, Coated - Sumitomo 196DCNU

MFR# 196DCNUISO/ANSI# SNMG190616Series SN

$23.40List $30.01 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/4
ShapeS - Square
GradeAC6040M
MaterialCarbide
CoatingCoated

Description

The Sumitomo 196DCNU is a SNMG190616N-EM carbide indexable insert, grade AC6040M, Coated coated. Suited for stainless steel.

Specifications

Ansi insert codeSNMG644
Ansi size code644
Chip breakerEEM
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishCoated
Coating processPVD
Corner radius in1/16
Grade characteristicsStainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.3126
Included angle90
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in3/4
Insert materialCarbide
Insert shapeS - Square
Insert size code644
Insert styleSNMG
Insert thickness in1/4
Iso codeSNMG190616N-EM
Iso insert codeSNMG190616
Iso size code190616
Manufacturer gradeAC6040M
Primary workpiece materialStainless Steel
RakeNegative
Relief angle0
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
Width in3/4
