Sumitomo

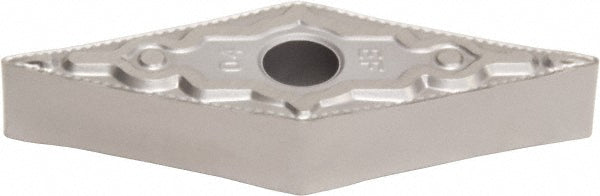

VNMG160404N-EF Solid Carbide Insert, Grade EH510 - Sumitomo 19DGCGW
MFR# 19DGCGWISO/ANSI# VNMG160404N-EFSeries VN
$14.20List $18.22
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeEH510
MaterialSolid Carbide
Description
The Sumitomo 19DGCGW is a VNMG160404N-EF solid carbide indexable insert, grade EH510. Suited for superalloy.
Specifications
Ansi codeVNMG331EEF
Chip breakerEEF
Clearance codeN
Coating processUncoated
Corner radius in1/64
Hole diameter0.1500
Included angle35.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6535
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code331
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160404N-EF
Manufacturer gradeEH510
Material gradeC3
Primary workpiece materialSuperalloy
RakeNeutral
Rake angle0
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
