Sumitomo

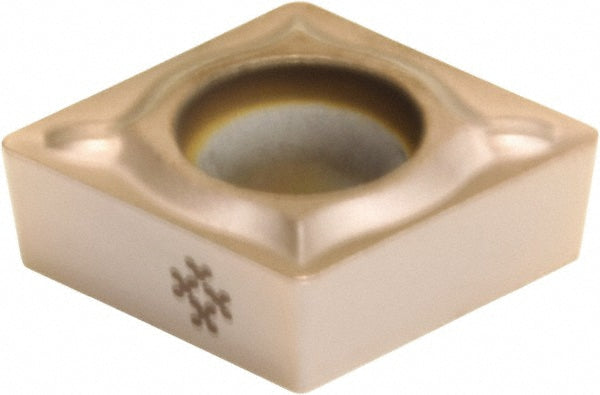

Diamond 3/8" IC Cermet Insert, Grade T2000Z, TiN - Sumitomo 19DXBPF
MFR# 19DXBPF
$9.16List $11.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeT2000Z
MaterialCermet
CoatingTiN
Description
The Sumitomo 19DXBPF is a cermet indexable insert, grade T2000Z, TiN coated.
Specifications
Chip breakerT
Clearance codeC
Coating finishTiN
Coating processPVD
Corner radius in1/32
Hole diameter0.1732
Included angle80.0
Inscribed circle in3/8
Insert holding methodScrew
Insert materialCermet
Insert shapeDiamond
Insert size code32.52
Insert styleCCMT
Insert thickness in5/32
Manufacturer gradeT2000Z
RakePositive
Rake angle8
Relief angle7
Tolerance codeM
