Sumitomo

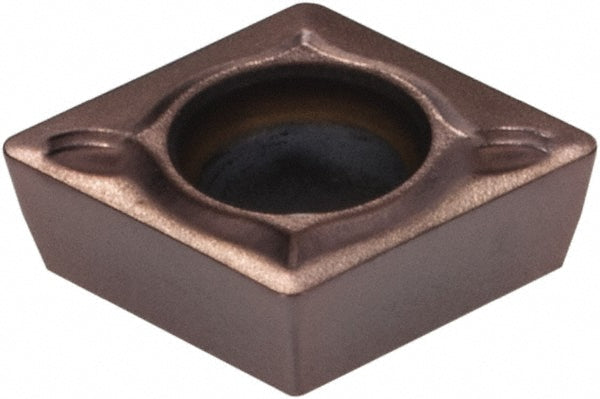

CPMT060204N-SU Cermet Insert, Grade T2000Z, Coated - Sumitomo 19DXW37
MFR# 19DXW37ISO/ANSI# CPMT060204N-SUSeries CP
$7.36List $9.44
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeT2000Z
MaterialCermet
CoatingCoated
Description
The Sumitomo 19DXW37 is a CPMT060204N-SU cermet indexable insert, grade T2000Z, Coated coated. Suited for steel.
Specifications
Ansi codeCPMT21.51ESU
Chip breakerESU
Clearance codeP
Coating finishCoated
Coating processPVD
Corner radius in1/64
Hole diameter0.1100
Included angle80.0
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2520
Insert materialCermet
Insert shapeDiamond
Insert size code21.51
Insert styleCPMT
Insert thickness in3/32
Iso codeCPMT060204N-SU
Manufacturer gradeT2000Z
Primary workpiece materialSteel
RakePositive
Rake angle8
Relief angle11
StandardsANSI; ISO 13399
Tolerance codeM
