Sumitomo

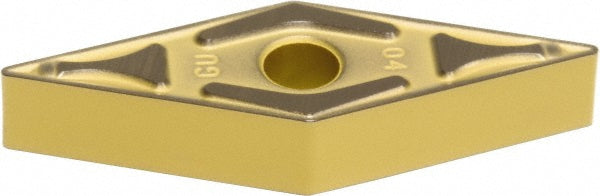

VNMG160404N-GU Solid Carbide Insert, Grade AC700G, TiC - Sumitomo 19DY158
MFR# 19DY158ISO/ANSI# VNMG160404N-GUSeries VN
$18.42List $23.63
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC700G
MaterialSolid Carbide
CoatingTiC
Description
The Sumitomo 19DY158 is a VNMG160404N-GU solid carbide indexable insert, grade AC700G, TiC coated. Suited for cast iron, steel.
Specifications
Ansi codeVNMG331EGU
Chip breakerEGU
Clearance codeN
Coating finishTiC
Coating processCVD
Corner radius in1/64
Hole diameter0.1500
Included angle35.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6535
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code331
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160404N-GU
Manufacturer gradeAC700G
Primary workpiece materialCast Iron; Steel
RakePositive
Rake angle7
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
