Sumitomo

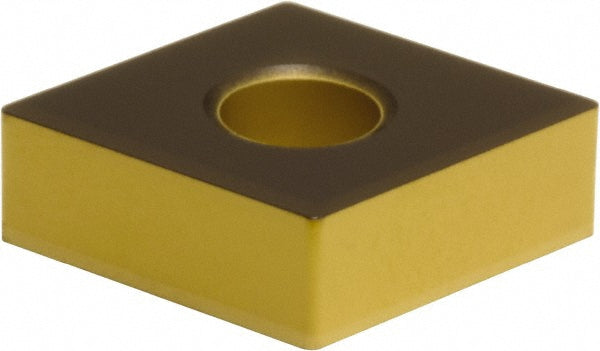

CNMA120408 Carbide Insert, Grade AC700G, TiC - Sumitomo 19DY271
MFR# 19DY271ISO/ANSI# CNMA120408Series CN
$11.18List $14.33
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC700G
MaterialCarbide
CoatingTiC
Description
The Sumitomo 19DY271 is a CNMA120408 carbide indexable insert, grade AC700G, TiC coated. Suited for cast iron, steel.
Specifications
Chip breakerA
Clearance codeN
Coating finishTiC
Coating processCVD
Corner radius in1/32
Hole diameter0.2031
Included angle80
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleCNMA
Insert thickness in3/16
Iso codeCNMA120408
Manufacturer gradeAC700G
Primary workpiece materialCast Iron; Steel
RakeNegative
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
