Sumitomo

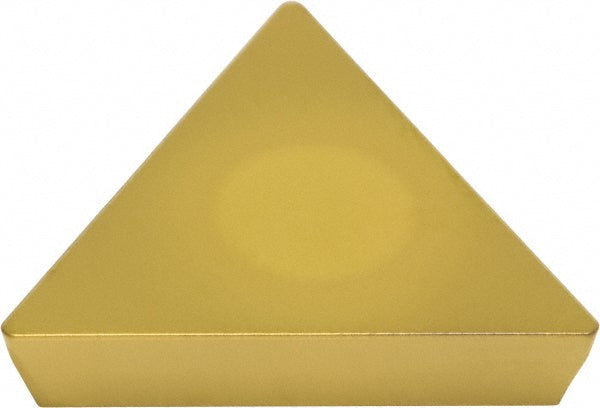

TPMN220408 Solid Carbide Insert, Grade AC700G, TiC - Sumitomo 19DY405
MFR# 19DY405ISO/ANSI# TPMN220408Series TP
$17.70List $22.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
GradeAC700G
MaterialSolid Carbide
CoatingTiC
Description
The Sumitomo 19DY405 is a TPMN220408 solid carbide indexable insert, grade AC700G, TiC coated. Suited for cast iron, steel.
Specifications
Ansi codeTPMN432
Chip breakerN
Clearance codeP
Coating finishTiC
Coating processCVD
Corner radius in1/32
Included angle60.0
Inscribed circle in1/2
Insert holding methodClamp
Insert length0.8661
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code432
Insert styleTPMN
Insert thickness in3/16
Iso codeTPMN220408
Manufacturer gradeAC700G
Primary workpiece materialCast Iron; Steel
RakePositive
Relief angle11
StandardsANSI; ISO 13399
Tolerance codeM
