Sumitomo

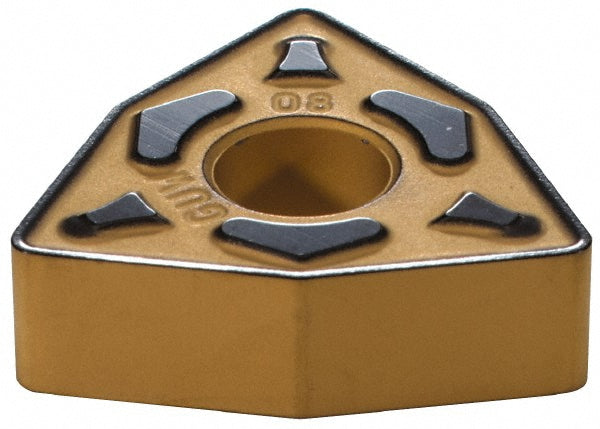

WNMG080408N-GUW Solid Carbide Insert, Grade AC700G, Al2O3 - Sumitomo 19DY824
MFR# 19DY824ISO/ANSI# WNMG080408N-GUWSeries TN
$12.31List $15.78
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeAC700G
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19DY824 is a WNMG080408N-GUW solid carbide indexable insert, grade AC700G, Al2O3 coated. Suited for cast iron, steel.
Specifications
Ansi codeWNMG432EGUW
Chip breakerEGUW
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.2031
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3425
Insert materialSolid Carbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080408N-GUW
Manufacturer gradeAC700G
Material gradeC7; C8
Primary workpiece materialCast Iron; Steel
RakeNeutral
Rake angle0
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
Wiper edgeYes
