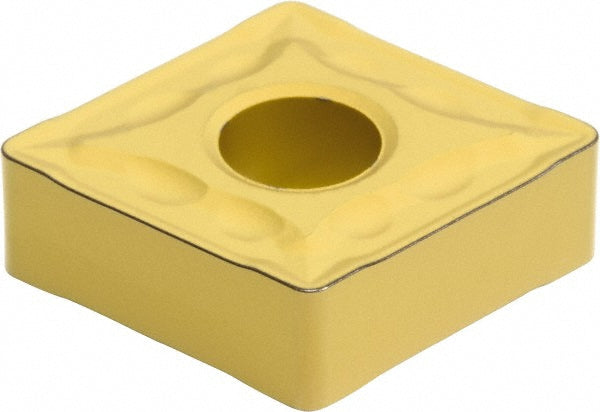

CNMG160608N-MU Carbide Insert, Grade AC700G, TiC - Sumitomo 19DYALF

Sumitomo

CNMG160608N-MU Carbide Insert, Grade AC700G, TiC - Sumitomo 19DYALF

MFR# 19DYALFISO/ANSI# CNMG160608Series CN

$18.98List $24.35 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeAC700G
MaterialCarbide
CoatingTiC

Description

The Sumitomo 19DYALF is a CNMG160608N-MU carbide indexable insert, grade AC700G, TiC coated. Suited for cast iron, steel.

Specifications

Ansi insert codeCNMG542
Ansi size code542
Chip breakerEMU
Chip breaker operationLight Machining; Medium Machining
Clearance codeN
Coating finishTiC
Coating processCVD
Corner radius in1/32
Grade characteristicsSteel (P) - High Wear-Resistance; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2500
Included angle80
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6339
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code542
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG160608N-MU
Iso insert codeCNMG160608
Iso size code160608
Manufacturer gradeAC700G
Primary workpiece materialCast Iron; Steel
RakePositive
Rake angle4
Relief angle0
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
