Sumitomo

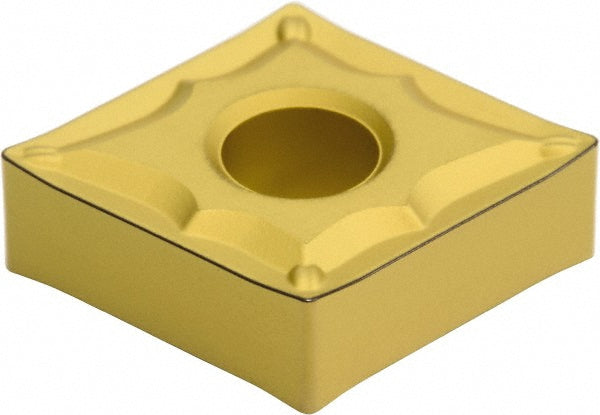

CNMG120404N-SU Solid Carbide Insert, Grade AC700G, TiC - Sumitomo 19DYANZ
MFR# 19DYANZISO/ANSI# CNMG120404N-SUSeries CN
$12.31List $15.78
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC700G
MaterialSolid Carbide
CoatingTiC
Description
The Sumitomo 19DYANZ is a CNMG120404N-SU solid carbide indexable insert, grade AC700G, TiC coated. Suited for cast iron, steel.
Specifications
Ansi codeCNMG431ESU
Chip breakerESU
Clearance codeN
Coating finishTiC
Coating processCVD
Corner radius in1/64
Hole diameter0.2031
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code431
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120404N-SU
Manufacturer gradeAC700G
Primary workpiece materialCast Iron; Steel
RakePositive
Rake angle13
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
