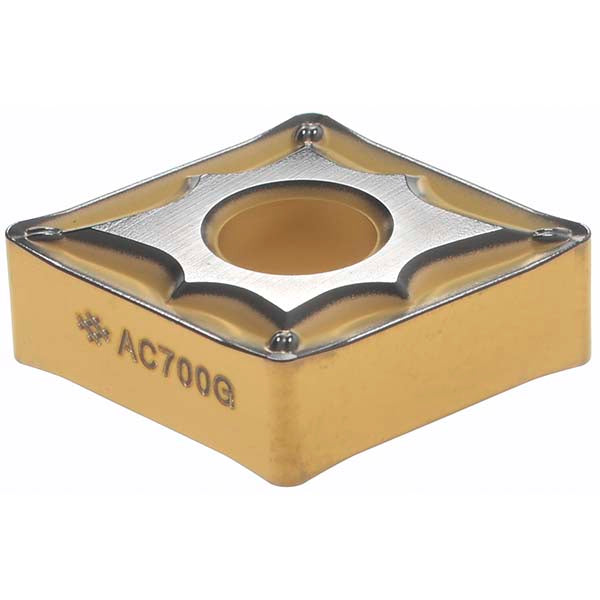

CNMG120408N-SU Carbide Insert, Grade AC700G, Al2O3 - Sumitomo 19DYAPA

Sumitomo

CNMG120408N-SU Carbide Insert, Grade AC700G, Al2O3 - Sumitomo 19DYAPA

MFR# 19DYAPAISO/ANSI# CNMG120408Series CN

$12.31List $15.78 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeAC700G
MaterialCarbide
CoatingAl2O3

Description

The Sumitomo 19DYAPA is a CNMG120408N-SU carbide indexable insert, grade AC700G, Al2O3 coated.

Specifications

Ansi insert codeCNMG432
Ansi size code432
Chip breakerESU
Chip breaker operationFinishing; Light Machining
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Grade characteristicsSteel (P) - High Wear-Resistance; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2031
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408N-SU
Iso insert codeCNMG120408
Iso size code120408
Manufacturer gradeAC700G
Material gradeC7; C8
RakePositive
Rake angle13
Relief angle0
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
