Sumitomo

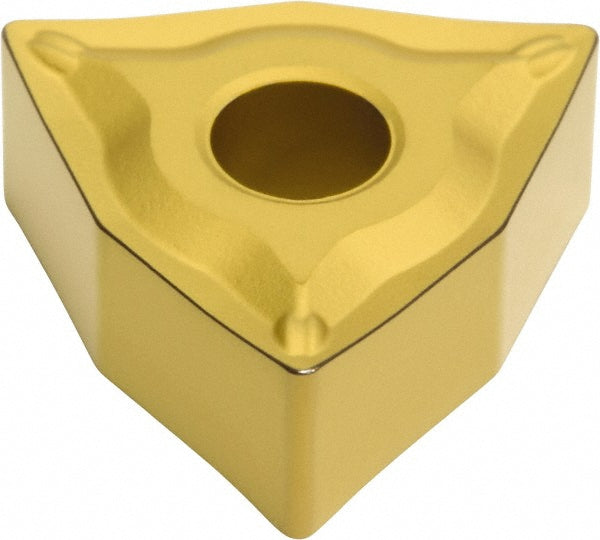

WNMG080408N-SU Solid Carbide Insert, Grade AC700G, TiC - Sumitomo 19DYAPG
MFR# 19DYAPGISO/ANSI# WNMG080408N-SUSeries TN
$11.50List $14.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeAC700G
MaterialSolid Carbide
CoatingTiC
Description
The Sumitomo 19DYAPG is a WNMG080408N-SU solid carbide indexable insert, grade AC700G, TiC coated. Suited for cast iron, steel.
Specifications
Ansi codeWNMG432ESU
Chip breakerESU
Clearance codeN
Coating finishTiC
Coating processCVD
Corner radius in1/32
Hole diameter0.2031
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3425
Insert materialSolid Carbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080408N-SU
Manufacturer gradeAC700G
Primary workpiece materialCast Iron; Steel
RakePositive
Rake angle13
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
