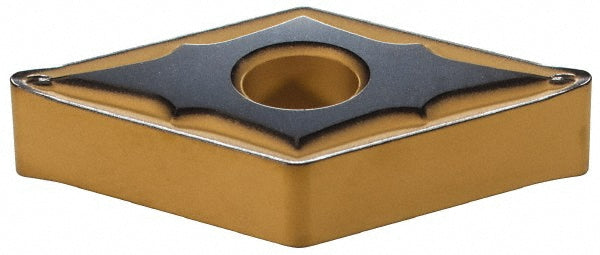

DNMG150408N-SU Solid Carbide Insert, Grade AC700G, Al2O3 - Sumitomo 19DYAPL
MFR# 19DYAPLISO/ANSI# DNMG150408N-SUSeries DN
$17.85List $22.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC700G
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19DYAPL is a DNMG150408N-SU solid carbide indexable insert, grade AC700G, Al2O3 coated. Suited for cast iron, steel.
Specifications
Ansi codeDNMG432ESU
Chip breakerESU
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.2031
Included angle55.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150408N-SU
Manufacturer gradeAC700G
Material gradeC7; C8
Primary workpiece materialCast Iron; Steel
RakePositive
Rake angle13
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
