Sumitomo

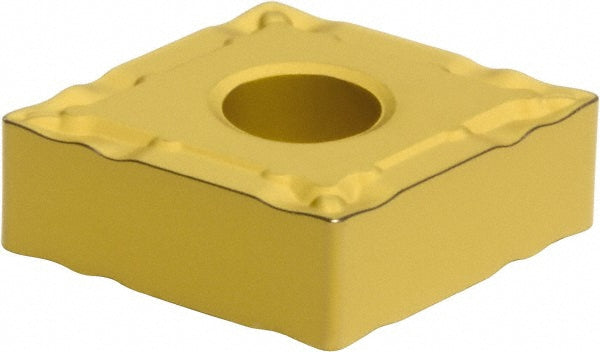

CNMG120404N-SX Carbide Insert, Grade AC700G, TiC - Sumitomo 19DYBER
MFR# 19DYBERISO/ANSI# CNMG120404Series CN
$12.31List $15.78
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeAC700G
MaterialCarbide
CoatingTiC
Description
The Sumitomo 19DYBER is a CNMG120404N-SX carbide indexable insert, grade AC700G, TiC coated. Suited for cast iron, steel.
Specifications
Ansi insert codeCNMG431
Ansi size code431
Chip breakerESX
Chip breaker operationFinishing; Light Machining
Clearance codeN
Coating finishTiC
Coating processCVD
Corner radius in1/64
Grade characteristicsSteel (P) - High Wear-Resistance; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2031
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code431
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120404N-SX
Iso insert codeCNMG120404
Iso size code120404
Manufacturer gradeAC700G
Primary workpiece materialCast Iron; Steel
RakePositive
Rake angle3
Relief angle0
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
