Sumitomo

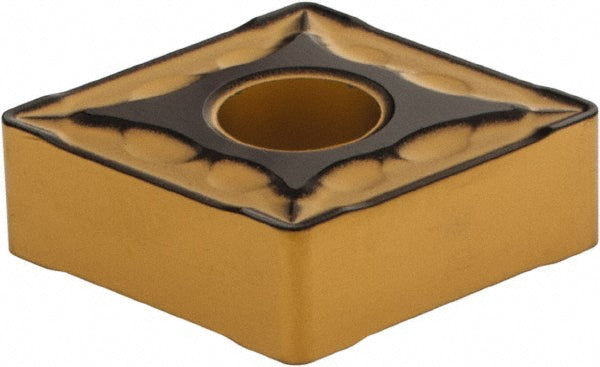

CNMG120408N-SX Solid Carbide Insert, Grade AC700G, Al2O3 - Sumitomo 19DYBES
MFR# 19DYBESISO/ANSI# CNMG120408N-SXSeries CN
$12.31List $15.78
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC700G
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19DYBES is a CNMG120408N-SX solid carbide indexable insert, grade AC700G, Al2O3 coated. Suited for cast iron, steel.
Specifications
Ansi codeCNMG432ESX
Chip breakerESX
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.2031
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408N-SX
Manufacturer gradeAC700G
Material gradeC7; C8
Primary workpiece materialCast Iron; Steel
RakePositive
Rake angle3
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
