Sumitomo

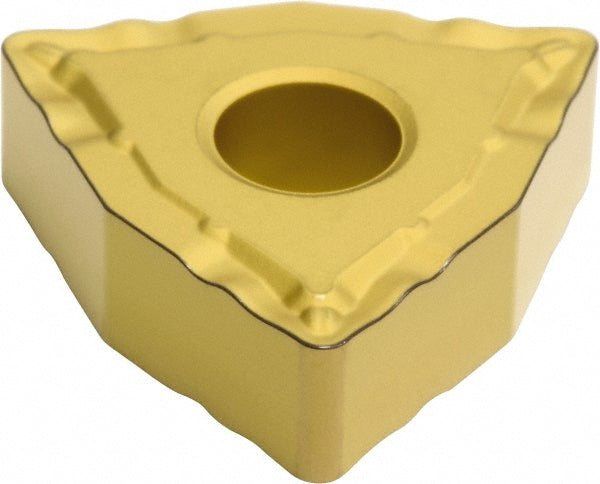

WNMG080412N-SX Solid Carbide Insert, Grade AC700G, TiC - Sumitomo 19DYBFB
MFR# 19DYBFBISO/ANSI# WNMG080412N-SXSeries TN
$11.50List $14.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeAC700G
MaterialSolid Carbide
CoatingTiC
Description
The Sumitomo 19DYBFB is a WNMG080412N-SX solid carbide indexable insert, grade AC700G, TiC coated. Suited for cast iron, steel.
Specifications
Ansi codeWNMG433ESX
Chip breakerESX
Clearance codeN
Coating finishTiC
Coating processCVD
Corner radius in3/64
Hole diameter0.2031
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3425
Insert materialSolid Carbide
Insert shapeTrigon
Insert size code433
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080412N-SX
Manufacturer gradeAC700G
Primary workpiece materialCast Iron; Steel
RakePositive
Rake angle3
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
