Sumitomo

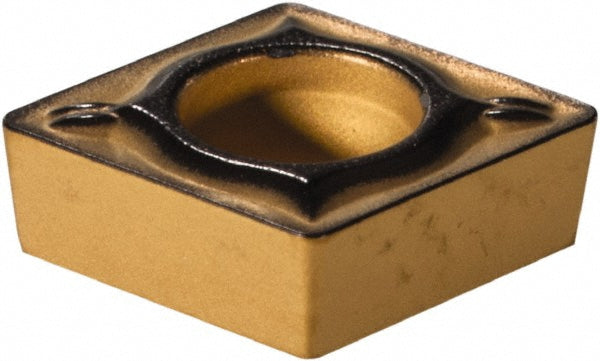

CCMT060204N-SU Carbide Insert, Grade AC700G, Al2O3 - Sumitomo 19DYW0Q
MFR# 19DYW0QISO/ANSI# CCMT060204N-SUSeries CC
$9.06List $11.62
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeAC700G
MaterialCarbide
CoatingAl2O3
Description
The Sumitomo 19DYW0Q is a CCMT060204N-SU carbide indexable insert, grade AC700G, Al2O3 coated. Suited for cast iron, steel.
Specifications
Chip breakerESU
Clearance codeC
Coating finishAl2O3
Coating processCVD
Corner radius in1/64
Hole diameter0.1100
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2520
Insert materialCarbide
Insert shapeDiamond
Insert size code21.51
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT060204N-SU
Manufacturer gradeAC700G
Material gradeC7; C8
Primary workpiece materialCast Iron; Steel
RakePositive
Rake angle8
Relief angle7
StandardsANSI; ISO 13399
Tolerance codeM
