Sumitomo

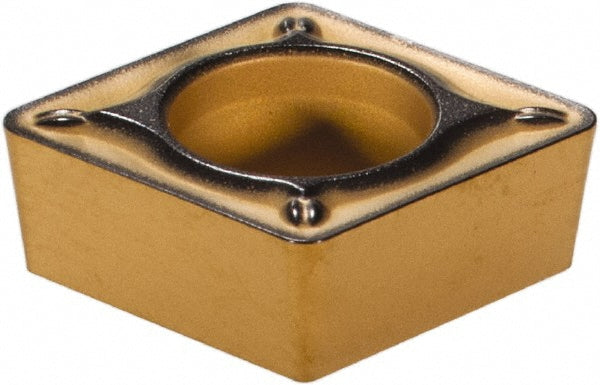

CCMT09T308N-SU Solid Carbide Insert, Grade AC700G, Al2O3 - Sumitomo 19DYW29
MFR# 19DYW29ISO/ANSI# CCMT09T308N-SUSeries CC
$12.88List $16.23
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC700G
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19DYW29 is a CCMT09T308N-SU solid carbide indexable insert, grade AC700G, Al2O3 coated. Suited for cast iron, steel.
Specifications
Ansi codeCCMT32.52ESU
Chip breakerESU
Clearance codeC
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.1732
Included angle80.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3819
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code32.52
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T308N-SU
Manufacturer gradeAC700G
Material gradeC7; C8
Primary workpiece materialCast Iron; Steel
RakePositive
Rake angle8
Relief angle7
StandardsANSI; ISO 13399
Tolerance codeM
