Sumitomo

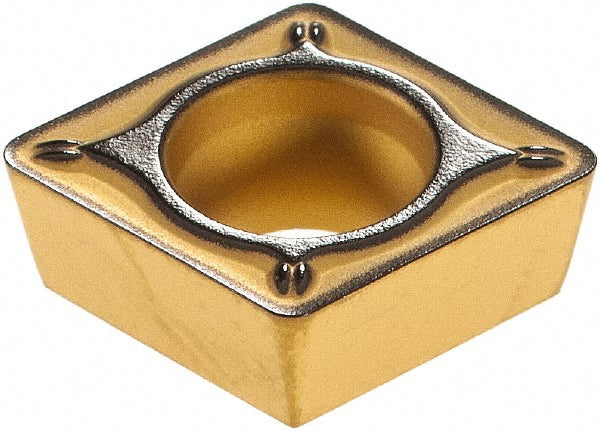

CPMT09T308N-SU Solid Carbide Insert, Grade AC700G, TiC - Sumitomo 19DYW3X
MFR# 19DYW3XISO/ANSI# CPMT09T308N-SUSeries CPMT
$11.20List $14.36
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC700G
MaterialSolid Carbide
CoatingTiC
Description
The Sumitomo 19DYW3X is a CPMT09T308N-SU solid carbide indexable insert, grade AC700G, TiC coated. Suited for cast iron, steel.
Specifications
Ansi codeCPMT32.52ESU
Chip breakerESU
Clearance codeP
Coating finishTiC
Coating processCVD
Corner radius in1/32
Hole diameter0.1732
Included angle80.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3819
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code32.5
Insert styleCPMT
Insert thickness in5/32
Iso codeCPMT09T308N-SU
Manufacturer gradeAC700G
Primary workpiece materialCast Iron; Steel
RakePositive
Rake angle8
Relief angle11
StandardsANSI; ISO 13399
Tolerance codeM
