Sumitomo

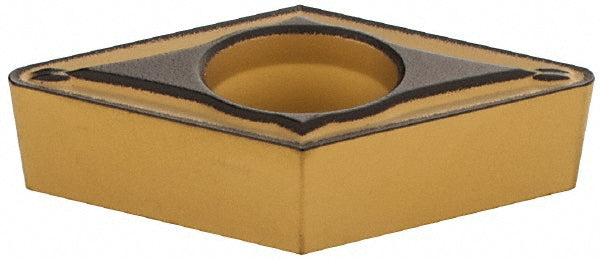

DCMT11T308N-SU Carbide Insert, Grade AC700G, TiC - Sumitomo 19DYW68
MFR# 19DYW68ISO/ANSI# DCMT11T308Series DC
$16.41List $21.04
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
GradeAC700G
MaterialCarbide
CoatingTiC
Description
The Sumitomo 19DYW68 is a DCMT11T308N-SU carbide indexable insert, grade AC700G, TiC coated. Suited for cast iron, steel.
Specifications
Ansi insert codeDCMT32.52
Ansi size code32.52
Chip breakerESU
Chip breaker operationFinishing; Light Machining
Clearance codeC
Coating finishTiC
Coating processCVD
Corner radius in1/32
Grade characteristicsSteel (P) - High Wear-Resistance; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1732
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4567
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code32.52
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT11T308N-SU
Iso insert codeDCMT11T308
Iso size code11T308
Manufacturer gradeAC700G
Primary workpiece materialCast Iron; Steel
RakePositive
Rake angle8
Relief angle7
Side clearancePositive
StandardsANSI; ISO 13399
Tolerance codeM
