Sumitomo

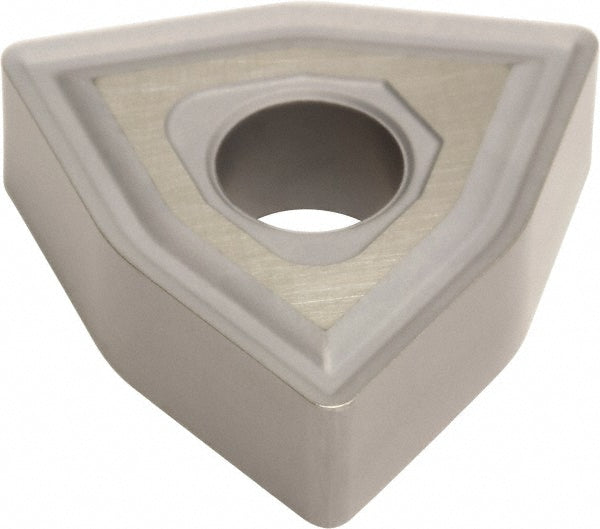

WNMG080404N-EX Solid Carbide Insert, Grade EH520 - Sumitomo 19EA177
MFR# 19EA177ISO/ANSI# WNMG080404N-EXSeries TN
$9.31List $11.94
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeEH520
MaterialSolid Carbide
Description
The Sumitomo 19EA177 is a WNMG080404N-EX solid carbide indexable insert, grade EH520. Suited for superalloy.
Specifications
Ansi codeWNMG431EEX
Chip breakerEEX
Clearance codeN
Coating processUncoated
Corner radius in1/64
Hole diameter0.2031
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3425
Insert materialSolid Carbide
Insert shapeTrigon
Insert size code431
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080404N-EX
Manufacturer gradeEH520
Material gradeC2
Primary workpiece materialSuperalloy
RakePositive
Rake angle16
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
