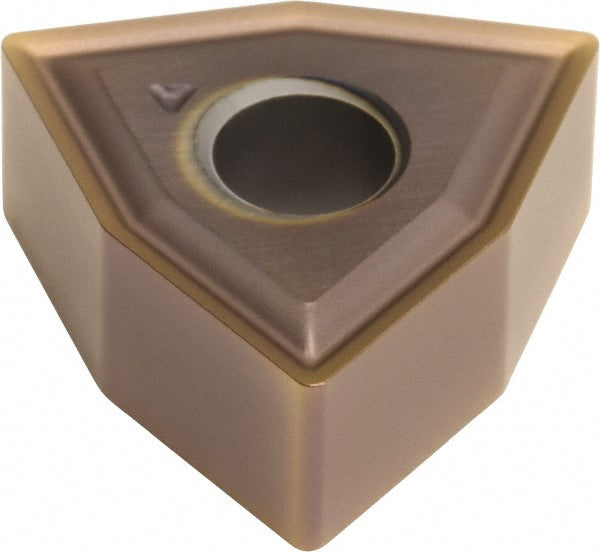

WNMG080408N-EX Carbide Insert, Grade AC530U, TiAlN - Sumitomo 19HM178
MFR# 19HM178ISO/ANSI# WNMG080408N-EXSeries TN
$11.20List $14.36
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeAC530U
MaterialCarbide
CoatingTiAlN
Description
The Sumitomo 19HM178 is a WNMG080408N-EX carbide indexable insert, grade AC530U, TiAlN coated.
Specifications
Chip breakerEEX
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.2031
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3425
Insert materialCarbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080408N-EX
Manufacturer gradeAC530U
RakePositive
Rake angle16
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO 13399
Tolerance codeM
