Sumitomo

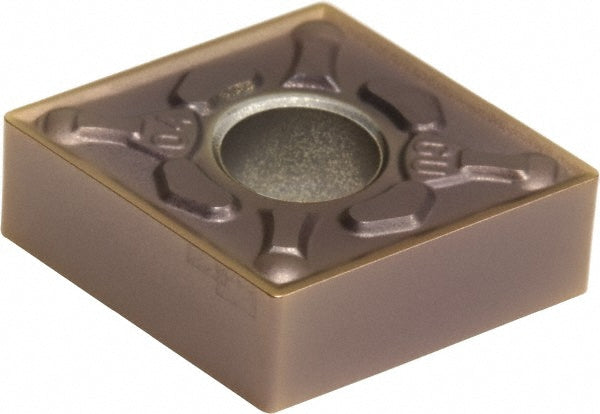

CNMG120408N-GU Solid Carbide Insert, Grade AC530U, TiAlN - Sumitomo 19HM335
MFR# 19HM335ISO/ANSI# CNMG120408N-GUSeries CN
$11.20List $14.36
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC530U
MaterialSolid Carbide
CoatingTiAlN
Description
The Sumitomo 19HM335 is a CNMG120408N-GU solid carbide indexable insert, grade AC530U, TiAlN coated.
Specifications
Ansi codeCNMG432EGU
Chip breakerEGU
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.2031
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408N-GU
Manufacturer gradeAC530U
RakePositive
Rake angle7
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO 13399
Tolerance codeM
