Sumitomo

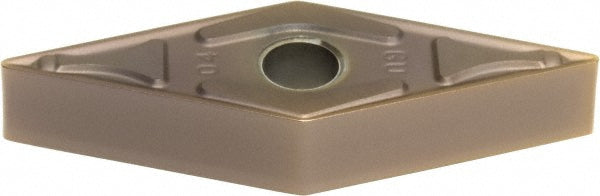

VNMG160408N-GU Carbide Insert, Grade AC530U, TiAlN - Sumitomo 19HM342
MFR# 19HM342ISO/ANSI# VNMG160408Series VN
$15.50List $19.54
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeAC530U
MaterialCarbide
CoatingTiAlN
Description
The Sumitomo 19HM342 is a VNMG160408N-GU carbide indexable insert, grade AC530U, TiAlN coated.
Specifications
Ansi insert codeVNMG332
Ansi size code332
Chip breakerEGU
Chip breaker operationLight Machining; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1500
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6535
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code332
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160408N-GU
Iso insert codeVNMG160408
Iso size code160408
Manufacturer gradeAC530U
RakePositive
Rake angle7
Relief angle0
Secondary workpiece materialStainless Steel
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
