Sumitomo

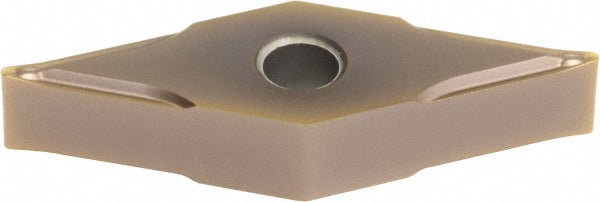

VNMG160408N-SU Solid Carbide Insert, Grade AC530U, TiAlN - Sumitomo 19HMAPS
MFR# 19HMAPSISO/ANSI# VNMG160408N-SUSeries VN
$16.31List $20.91
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC530U
MaterialSolid Carbide
CoatingTiAlN
Description
The Sumitomo 19HMAPS is a VNMG160408N-SU solid carbide indexable insert, grade AC530U, TiAlN coated.
Specifications
Ansi codeVNMG332ESU
Chip breakerESU
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.1500
Included angle35.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6535
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code332
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160408N-SU
Manufacturer gradeAC530U
RakePositive
Rake angle13
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO 13399
Tolerance codeM
