Sumitomo

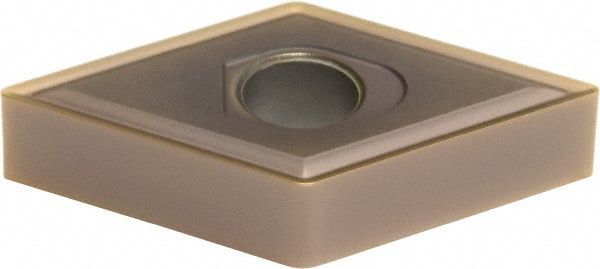

DNMG150412N-EX Solid Carbide Insert, Grade AC510U, TiAlN - Sumitomo 19HV171
MFR# 19HV171ISO/ANSI# DNMG150412N-EXSeries DN
$15.71List $20.15
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC510U
MaterialSolid Carbide
CoatingTiAlN
Description
The Sumitomo 19HV171 is a DNMG150412N-EX solid carbide indexable insert, grade AC510U, TiAlN coated.
Specifications
Ansi codeDNMG433EEX
Chip breakerEEX
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Hole diameter0.2031
Included angle55.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code433
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150412N-EX
Manufacturer gradeAC510U
RakePositive
Rake angle16
Relief angle0
Secondary workpiece materialSuperalloy
StandardsANSI; ISO 13399
Tolerance codeM
