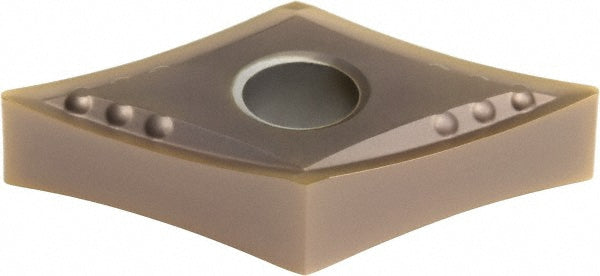

DNMG150404N-UP Carbide Insert, Grade AC510U, TiAlN - Sumitomo 19HV366

Sumitomo

DNMG150404N-UP Carbide Insert, Grade AC510U, TiAlN - Sumitomo 19HV366

MFR# 19HV366ISO/ANSI# DNMG150404Series DN

$15.71List $20.15 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeAC510U
MaterialCarbide
CoatingTiAlN

Description

The Sumitomo 19HV366 is a DNMG150404N-UP carbide indexable insert, grade AC510U, TiAlN coated.

Specifications

Ansi insert codeDNMG431
Ansi size code431
Chip breakerEUP
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Grade characteristicsSpecial, Super Alloys (S) - High Wear-Resistance
Hole diameter0.2031
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code431
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150404N-UP
Iso insert codeDNMG150404
Iso size code150404
Manufacturer gradeAC510U
RakePositive
Rake angle10
Relief angle0
Secondary workpiece materialSuperalloy
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
