Sumitomo

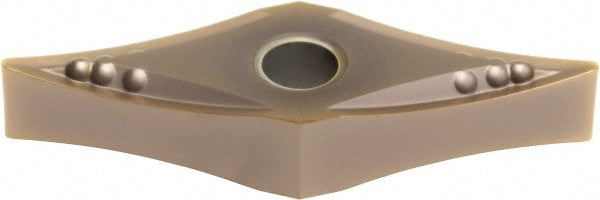

VNMG160404N-UP Solid Carbide Insert, Grade AC510U, TiAlN - Sumitomo 19HV374
MFR# 19HV374ISO/ANSI# VNMG160404N-UPSeries VN
$16.31List $20.91
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC510U
MaterialSolid Carbide
CoatingTiAlN
Description
The Sumitomo 19HV374 is a VNMG160404N-UP solid carbide indexable insert, grade AC510U, TiAlN coated.
Specifications
Ansi codeVNMG331EUP
Chip breakerEUP
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.1500
Included angle35.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6535
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code331
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160404N-UP
Manufacturer gradeAC510U
RakePositive
Rake angle10
Relief angle0
Secondary workpiece materialSuperalloy
StandardsANSI; ISO 13399
Tolerance codeM
